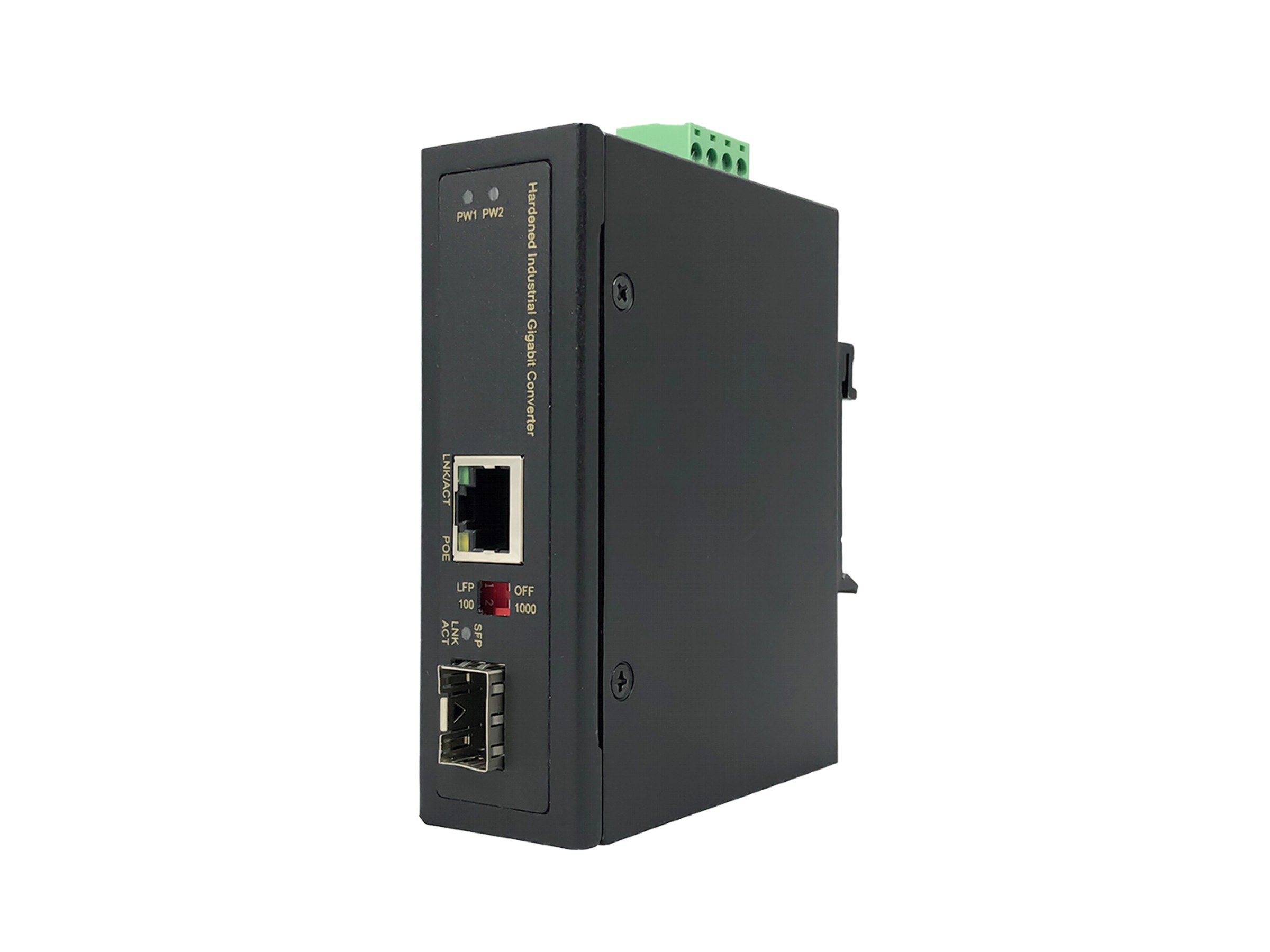

CS8011NSFP AKTIVATECH Gigabit Non-PoE Ethernet Media Converter, 1x 10/100/1000M TX + 1x 100/1000M SFP dual redundant PI
- Hardened Industrial Gigabit Media Converter
- Designed for Security, Transportation and Telco applications
- Supports power 1, power 2 dual-redundant power input
- 1x 10/100/1000M TX + 1x 100/1000M SFP
- 12-56VDC power input
- operating temp.: -40°C to +75°C Wide Range Temperature
- DIN-Rail, Wall Mount
Specification
|
IEEE Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE 802.3x Flow Control and Back Pressure, |
|
|
Switch Architecture |
Back-plane (Switching Fabric): 4Gbps |
|
|
Data Processing |
Ports speed are the same: Converter mode Ports speed are not the same: Switch mode (store and forward) |
|
|
Flow Control |
IEEE 802.3x Flow Control and Back Pressure |
|
|
Jumbo Frame |
16KB |
|
|
MAC Address Table Size |
1K |
|
|
Packet Buffer Size |
512Kbits |
|
|
Network Connector |
1 x RJ-45 10/100/1000BaseT(X) 1 x 100/1000M SFP |
|
|
Network Cable |
UTP/STP above Cat.5e Cable |
|
|
EIA/TIA-568 10-ohm (100m) |
||
|
Fiber Cable
(Multi-mode):50/125um,62.5/125um |
||
|
Protocol |
CSMA/CD |
|
|
LED Indicators |
PW1 (Green): ON－Power is detected OFF－Power is not detected PW2 (Green): ON－Power is detected OFF－Power is not detected TX LNK/ACT (Green): ON－TX port is detected Flashing－TX data is transmitting/receiving SFP LNK/ACT (Green): ON－FX port is detected Flashing－FX data is transmitting/receiving |
|
|
DIP Switch Function |
DIP1: OFF－LFP disabled (Default) ON－LFP enabled DIP 2: OFF－SFP speed 1000M (Default) ON－SFP speed 100M Link Fault Pass Through (LFP) is when copper side signal lost or disconnect, fiber side link signal will actively off, when fiber side signal lost or disconnect, copper side link signal will also actively off. |
|
Reserve polarity protection |
Present |
|
Overload current protection |
Present |
|
Power Input |
Redundant Dual DC 12V-56V Power Input |
|
Power Consumption |
3Watts @48VDC full load |
|
Removable Terminal Block |
4 pin contact terminal blocks for power input Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Wire Strip length: 7-8mm Torque: 5lb-In/0.5Nm/0.56Nm |
|
Operating Temperature |
-40°C to 75°C |
|
Operating Humidity |
5% to 95% (Non-condensing) |
|
Storage Temperature |
-40°C to 85°C |
|
MTBF (mean time between failure) |
>500,000 hrs (Telcordia (Bellcore), GB) at 50°C |
|
Housing Design |
IP30 Design, Rugged Aluminum |
|
Case Dimension (L x W x D) |
103.5 x 32 x 81.5 mm (L x W x D) |
|
Installation |
DIN-Rail and wall mount brackets included |
|
Certifications |
|
|
Safety |
LVD(EN62368-1) |
|
EMC |
CE, FCC, EN 55032/35 |
|
EMI |
CISPR 32, FCC Part 15B Class A |
|
EMS |
IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV |
|
Vibration |
EN 60068-2-6 |
|
Shock |
EN 60068-2-27 |
|
Free Fall |
EN 60068-2-32 |
