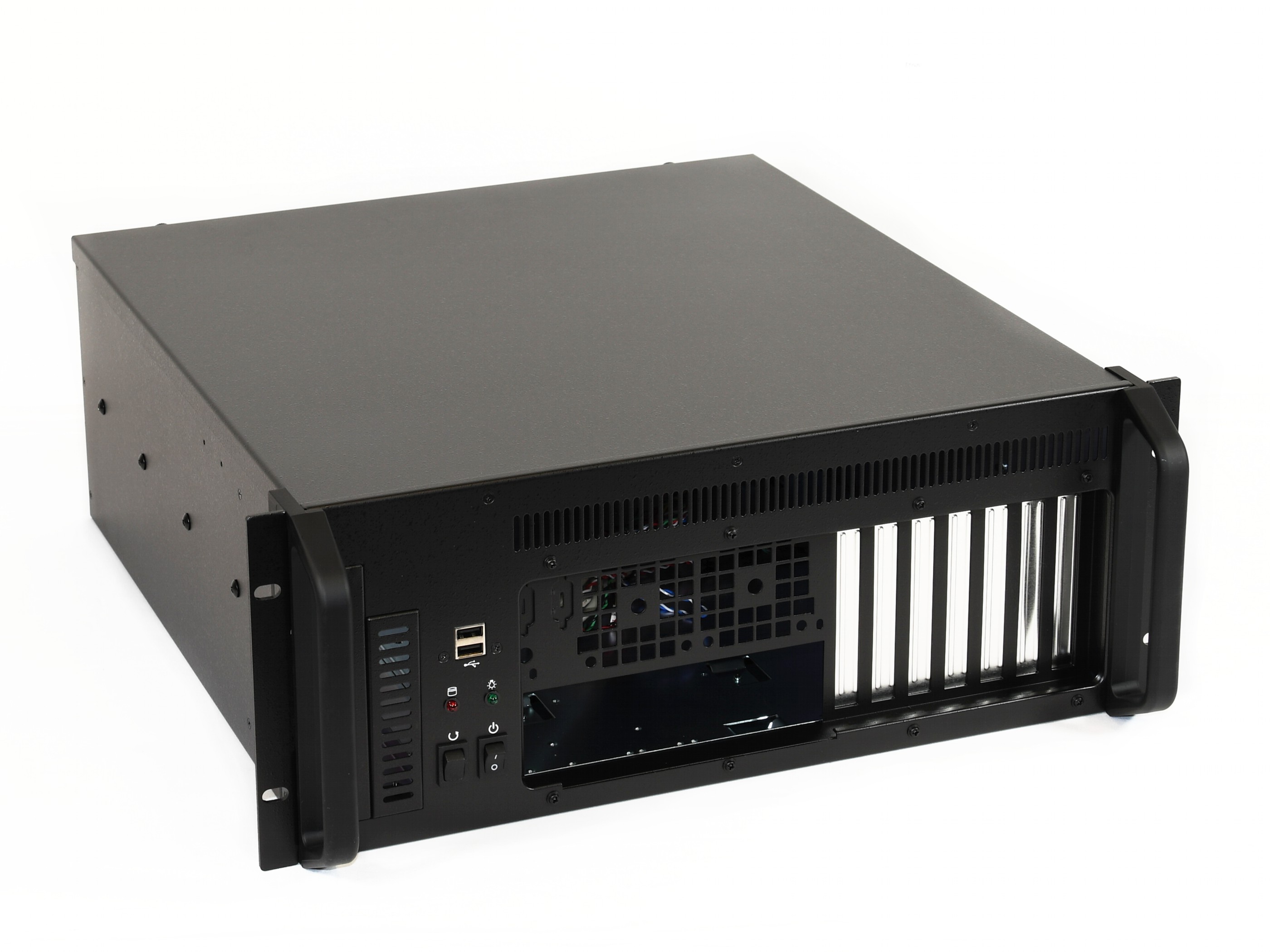

GHI-4F1ATXR GUANGHSING 4U/4HE 19" (19 Zoll) Chassis with I/O and Slots on Frontside for EATX M/B
GHI-4F1ATXR 4U/4HE 19" Chassis designed for industrial use with I/O and slots on the front panel, space for EATX Mainboard and depth less than 450mm
- 4U, 19" chassis industrial grade
- Depth 447mm
- ATX form up to 12"x13"
- Frontload version Color black
Produktnummer:
GH-4F1SX
Hersteller-Nr.:
GHI-4F1ATXR
Hersteller:
GUANGHSING
Specifications:
‧ EIA RS-310C 19 Zoll Rackmount Standard
‧ Construction: Heavy Duty Cold Rolled Steel
‧ Color: Black (Standard), Beige or RAL color on request
‧ Support: EATX M/B (Max. to 12" x 13") SSI EEB 3.0
‧ Optional: 14/15-slot Passive Backplane (GHI-4F1SR)
‧ Drive Capacity: 1x Slim CD-ROM & 1x 3.5" FDD & 2x 3.5" HDD
‧ Power Supply (Optional): PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 230mm
‧ Cooling: 2x (90mm = 51.0CFM ea.) Fans & 2x (60mm = 23.5CFM ea.) Fans (Optional)
‧ Connector Port (Front): 2x USB Ports
‧ Indicators: LEDs for Power ON/OFF, HDD Activity
‧ Switch: Power ON/OFF Momentary (Rocker), System Reset
‧ Flexible: Hold Down Bar Designed
‧ Dimensions (W x D x H): 483 x 177 x 447mm (19.0" x 7.0" x 17.6")
‧ Cuft: 4.4
‧ GW: 14.2 kgs / 31.3 lbs
‧ Carton Size(cm): 61.8 x 34.0 x 59.0 (24.3" x 13.4" x 23.2")
‧ Humidity: 5% - 95% Non-condensing
‧ EIA RS-310C 19 Zoll Rackmount Standard
‧ Construction: Heavy Duty Cold Rolled Steel
‧ Color: Black (Standard), Beige or RAL color on request
‧ Support: EATX M/B (Max. to 12" x 13") SSI EEB 3.0
‧ Optional: 14/15-slot Passive Backplane (GHI-4F1SR)
‧ Drive Capacity: 1x Slim CD-ROM & 1x 3.5" FDD & 2x 3.5" HDD
‧ Power Supply (Optional): PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 230mm
‧ Cooling: 2x (90mm = 51.0CFM ea.) Fans & 2x (60mm = 23.5CFM ea.) Fans (Optional)
‧ Connector Port (Front): 2x USB Ports
‧ Indicators: LEDs for Power ON/OFF, HDD Activity
‧ Switch: Power ON/OFF Momentary (Rocker), System Reset
‧ Flexible: Hold Down Bar Designed
‧ Dimensions (W x D x H): 483 x 177 x 447mm (19.0" x 7.0" x 17.6")
‧ Cuft: 4.4
‧ GW: 14.2 kgs / 31.3 lbs
‧ Carton Size(cm): 61.8 x 34.0 x 59.0 (24.3" x 13.4" x 23.2")
‧ Humidity: 5% - 95% Non-condensing
